Vascular OB Combo Display Doppler

Display OB-VASC combo

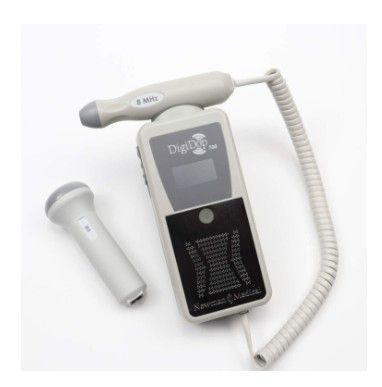

DigiDop 700 with 3MHz fetal & 8MHz vascular probes

Specifications

Level of Protection against electrical shock

Type B Applied Part

Class II Equipment

Designed to meet the following standards:

IEC60101-1; IEC60601-2; IEC60601-2-37

Dimensions-imperial (h x w x d): 6” x 2.5” x 1.25”

Dimensions metric (h x l x w): 152 x 64 x 32 mm

Weight (with batteries): 370 grams (13 ounces)

Weight (with batteries): 370 grams (13 ounces)

Operating Temperature: 10° to 40°C (50° to 104°F)

Operating Humidity: 30% to 75%

Transport/Storage Temperature: -20° to 50°C (-4° to 122°F)

Transport/Storage Humidity: 5% to 90%, non-condensing

Battery Voltage, type: 3 x 1.5 volts, AA Alkaline; 3 x 1.2 volts, AA NiMH

Battery Life: NiMH: 500, 1-minute exams; Alkaline: 750, 1-minute exams

Audio Bandwidth and power: 100Hz – 3000Hz, 1.0W

Heart Rate Calculation accuracy: +/- 3 BPM

Audio Cable Interface: 3.5mm stereo plug
