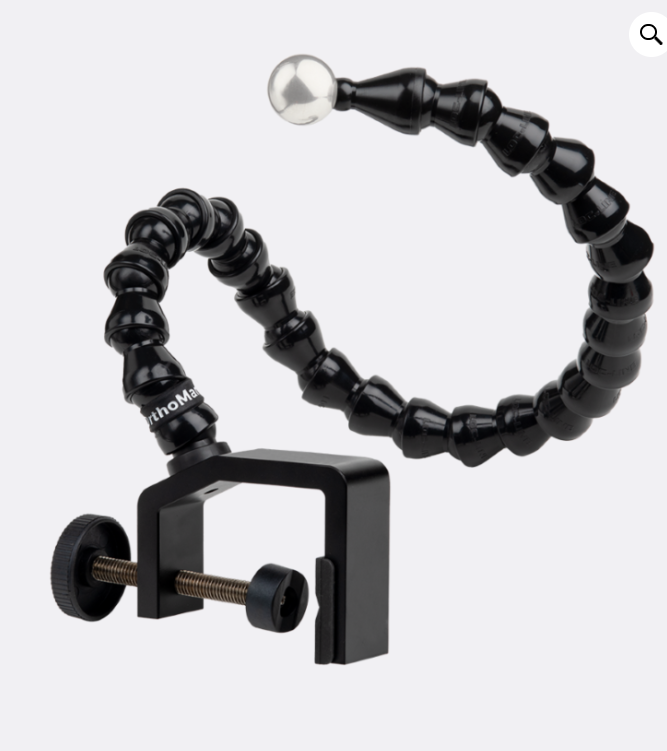

The large clamp base Model OM-1011 is designed for use on any clampable surface, flat or round, up to 2 3/8” thick. It works especially well when attached to patient grab handles, or step stool and elevated stair handles.

When using, simply position and tighten. When attaching to a round surface, position the V notch on the fixed side of the clamp where you intend to clamp, use the speed tightening nut for coarse adjustment then the large wheel for additional clamping force. This is a strong clamp, so don’t overtighten.

Position the sphere normally afterward.

Description

OrthoMark OM-1011
The clamp base, fully adjustable X-ray magnification marker is designed for use with all orthopedic and veterinary surgical templating software.

Clamp: 2.375″ jaws
Arm length: 24″
Weight: 13oz
Ball: 25.4mm/1″ Stainless
