The lever-action 2.75” super suction Model OM-1009 is designed for use on any smooth surface and surfaces that are slightly dimpled or not completely smooth. This unit will not function well on a surface that appears “sandy” or rough.

When using, simply place against the surface and squeeze the lever until it clicks. This will provide a firm hold and allow the OrthoMark ball to be positioned easily. Remove by pressing the lock release button on the side.

***Ensure that the release button is pressed and the handle extends to the open position before pulling the suction cup away from the surface. Failure to do so may result in damage to the suction cup and is not covered under warranty.

When finished, it is a good idea to lightly clean the surface with water and place on a counter or in a cabinet to avoid dust gathering. It is also best not to leave the suction cup attached to a wall or your equipment. The suction will eventually dissipate and the unit will fall.

If you’re having a difficult time locating a surface to attach your OM-1009 to, you can now use the OM-SD “sticky disc” to attach it anywhere you like that is amenable to a strong adhesive tape.

Description

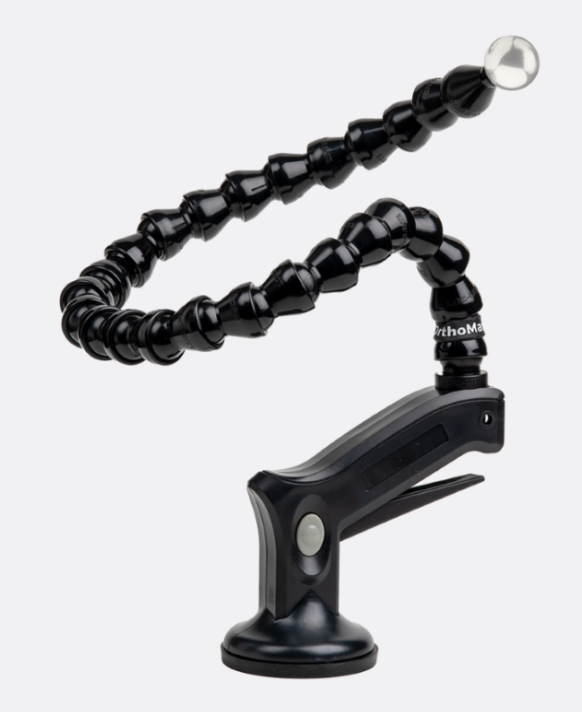

OrthoMark OM-1009
The lever-action suction base, fully adjustable X-ray magnification marker is designed for use with all orthopedic and veterinary surgical templating software.

2.9″ Lever action suction
Arm length: 24″
Weight: 16oz
Ball: 25.4mm/1″ Stainless
