MRI ACR Phantom Large with Case

On Hand: N/A
Sales Unit: EA
SKU
146781

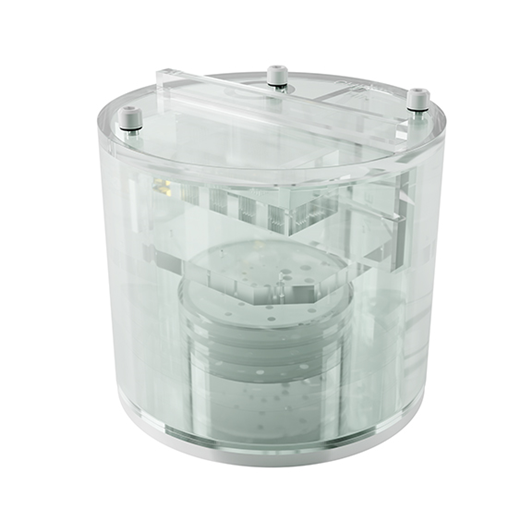

MRI ACR Phantom, Large

The ACR accredited Large MRI phantom is for comprehensive evaluation of critical imaging parameters of magnetic resonance imaging (MRI) in a time efficient manner. The phantom can be used for the measurement of absolute values for calibration purposes. However, its design is optimized for time efficient daily quality assurance too. Includes *case and 2-axis level.

*Case is MR Unsafe.

Measures:

  • Geometric distortion
  • Spatial resolution
  • Slice thickness and position
  • Interslice gap
  • Image bandwidth
  • Low contrast detectability
  • Image uniformity
  • Signal-to-noise ratio (SNR)
  • Physical and electronic slice offset
  • Point of reference
  • Bandwidth: water-fat shift
  • 8 inch diameter

Product features:

  • ACR Accredited
  • Complies with:
    - ACR MRI Accreditation Program
    - IPEM Report 80 “Quality Control in MRI”, 1998
    - AAPM Rep. 28 “Quality Assurance methods & phantoms for MRI”, 1990
    - AAPM Rep. 34 “Acceptance testing of MRI systems”, 1992
    - AAPM Rep. 100 “Acceptance & Quality Assurance procedures for MRI facilities”, 2010
  • CE certified
  • The manual provides detailed guidelines for carrying out each test, results assessment and registration
