MammoMask Illuminators

MAMMOMASK® illuminators reflect more then two decades of experience with innovative mammography viewing systems. Three models have been redesigned to yield the most uniform viewing surfaces available plus much higher luminance.

The new units measure within a 5 to 10% variation (DIN6856 standard) to provide homogeneous viewing conditions for each film whether it is read in the center or at the periphery.

The MammoMask® 12 accommodates two tiers of both size mammo film with fully collimating shutters, a dimmer to match the light level with film density, and a glass viewing surface to avoid the scratches which appear with plastic.

THIS ITEM IS MADE TO ORDER AND NON-RETURNABLE

MammoMask MM4

Film Capacity: 2 across of 24 x 30cm film (sides overhang slightly) or 2 over 2 of 18 x 24cm film or 1 14" x 17" radiographs.
Total viewing area in cm: 38x45
Luminance level in nits: 5,300
Lamps: 4 x 18 watt lamps
Dimensions in inches: 28 3/8 H x 24 W* x 5 1/8 D
Net weight in pounds: 46
Dimmer/rheostat: yes

MammoMask MM8

Film Capacity: 4 across of 24 x 30cm film (sides overhang slightly) or 4 over 4 of 18 x 24cm film or 2 14" x 17" radiographs.
Total viewing area in cm: 73x45
Luminance level in nits: 7,000
Lamps: 12 x 18 watt lamps
Dimensions in inches: 28 3/8 H x 40 1/2 W* x 5 1/8 D
Net weight in pounds: 81
Dimmer/rheostat: yes

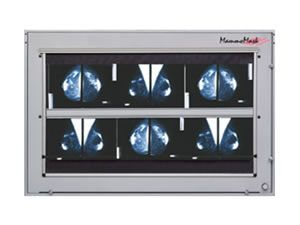

MammoMask 12

Film Capacity: 5 over 5 of 24 x 30cm film or 6 over 6 of 18 x 24cm film
Total viewing area in cm: 108 x 54
Luminance level in nits: 5,800
Lamps: 8 x 36 watt lamps
Dimensions in inches:  34 1/4 H x 51 1/2 W* x 5 1/8 D
Net weight in pounds: 110
Dimmer/rheostat: yes
