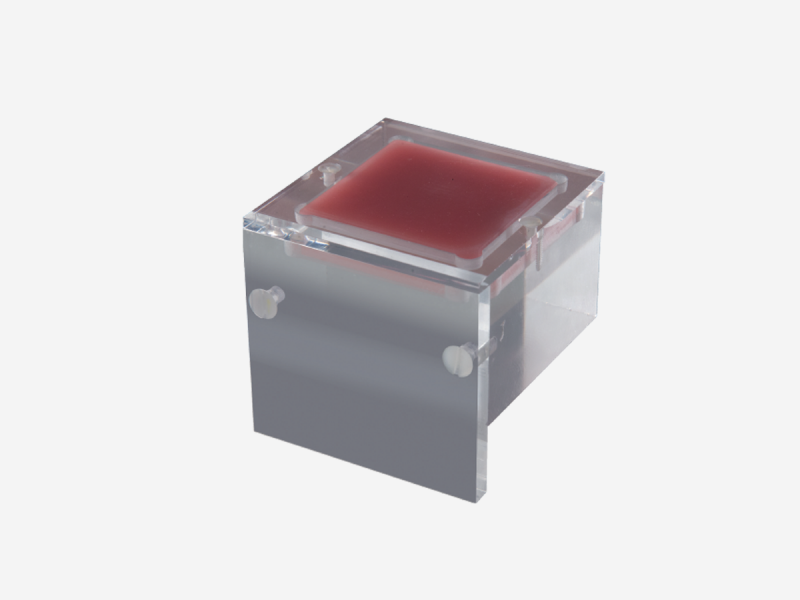

Mammo 156D Stereo Phantom

The Mammo 156D Stereo Phantom is ACR-accredited, and backed by thirty-plus
years servicing the mammography QA industry. The phantom supports monitoring of mammography systems used for biopsy and localization, and simulates radiographic characteristics of compressed breast tissue.

Evaluate Image Quality
The Mammo 156D Stereo Phantom, by design, contains test objects that are both visible on any system and difficult to see on the best stereotactic mammography systems.

The Mammo 156D Stereo™ Phantom
for Accreditation
• Meets ACR specifications
• Quick detection of objects from
0.20 to 1.00 mm
• Designed to hang on the biopsy system detector during rotation

Specifications

Wax and acrylic equivalent to 4.2 cm thick compressed breast
tissue. 50% adipose and 50% glandular. Fibers, specks and
masses follow ACR specifications.
Nylon Fibers (monofilament)
DIA (mm):
0.40, 0.54, 0.74, 0.93
Micro-calcifications
(Aluminum Oxide) DIA (mm):
0.20, 0.24, 0.32, 0.54
Masses DIA (mm): 0.25, 0.50, 0.75, 1.00
Dimensions: (L/W/H) 6.7 x 6.8 x 6.1 cm
