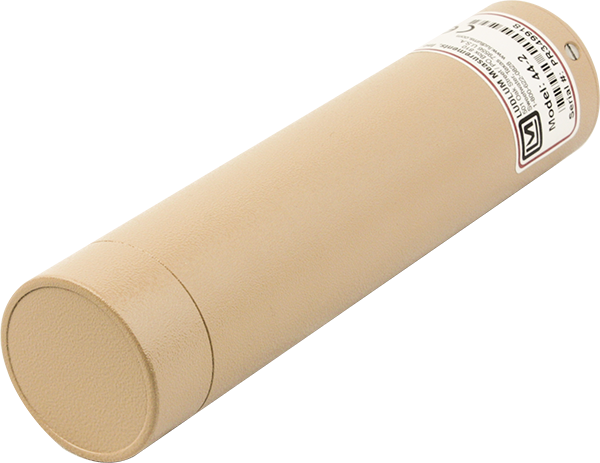

M44-2 High Energy Gamma Detector

On Hand: N/A
Sales Unit: EA

SKU

130565

ndicated Use	Low-level, wide-energy gamma detection
Detector Type	NaI(Tl) scintillator, 2.5 cm (1 in) dia. x 2.5 cm (1 in) thick
Efficiency (4π)	¹²⁵I: 7% ⁵⁷Co: 10% ¹³⁷Cs: 3% ⁶⁰Co: 3%
Typical Sensitivity (¹³⁷Cs gamma)	175 cpm per μR/hr
Recommended Energy Range	20 keV to 1.5 MeV
Exposure Energy Response (gamma)	Energy dependent (see Response Curve)
H*(10) Ambient Dose Equivalent Energy Response	Energy dependent (see Response Curve)
Typical Background (10 µR/hr field)	1800 cpm
Photomultiplier Tube	2.86 cm (1.123 in) diameter, magnetically shielded
Operating Voltage	500 to 1200 V
Temperature Range	-15 to 50 °C (5 to 122 °F) May be certified for -40 to 65 °C (-40 to 150 °F)
Environmental Rating	IP65
Connector	Series "C"
Construction	Aluminum with beige powder coat
Size (D x L)	5.1 x 21 cm (2 x 8.25 in)
Weight	0.5 kg (1 lb)
