Flangeless Pet Phantom with 2nd Deluxe Lid

On Hand: N/A
Sales Unit: EA
SKU
148259

Flangeless Pet Phantom with 2nd Deluxe Lid

Model PET/FL/P

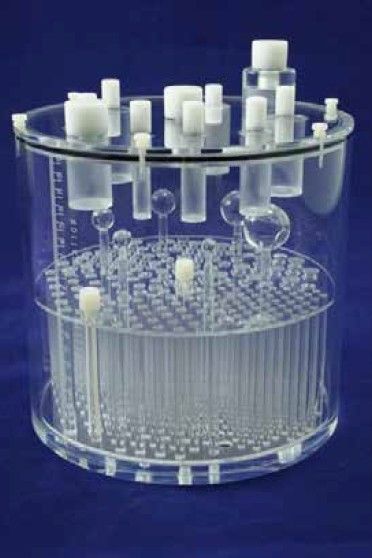

Flangeless Esser PET Phantom™

Main Applications

  •  Evaluation of tumor detectability
  •  Evaluation of SUVs
  •  Acceptance testing
  •  Routine quality assurance and control
  •  Evaluation of reconstruction filters
  •  Evaluation of attenuation and scatter correction
  •  Research
  •  ACR recommended phantom - MUST PROVIDE PETAP OR NMAP NUMBER FOR ACR ORDERS

Specifications of Cylinders

Cylinder inside diameter: ~ 209 mm
Cylinder inside height: ~ 186 mm
Cylinder wall thickness: ~ 6.4 mm

Specifications of Insert

Rod diameters: 4.8, 6.4, 7.9, 9.5, 11.1 and 12.7 mm*
Height of rods: 8.8 cm
Solid sphere diameters: 9.5, 12.7, 15.9, 19.1, 25.4 and
31.8 mm
Distance from sphere center to mounting surface: ~ 127 mm
Shipping Carton: 13” x 13“ x 13” Weight: 10lbs.

Flangeless Pet Lid Only

Model PET/FL/LID-ONLY

Specificcations

All clear material: PMMA

Refillable thin walled cylinders size/volume:

8 mm/~1.9 mL; 12 mm/~4.3 mL;
16 mm/~7.7 mL; (3×) 25 mm/~18.7 mL

Solid cylinder (Teflon®): 25mm

Cylinder height: ~ 38.1 mm

Volume with PET Lid & no insert: ~ 6.2 liters

Note: Above Lid can be made for Flanged or Flangeless Cylinder

Flangeless Esser PET Phantom, with 2nd Deluxe ECT Lid ™

Description

Includes above described Phantom with Flangeless Deluxe Jaszczak Lid.
